Cover, Removing
WARNING: This page is about a different variant/trim than selected.

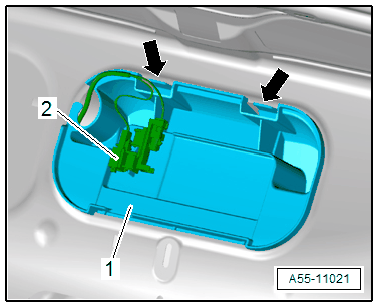

-- Loosen the catches -arrow- by pushing and pull the cover -1- off the lid.
-- Disconnect the connector -2-, if necessary.
-- When installing the cover guide the bottom side, while doing this pay attention to the correct routing of the wiring harness for the handle button.
-- Pivot the upper cover and engage audibly in the rear lid.
-- Check the clearance for the wiring harness and correct if necessary.
