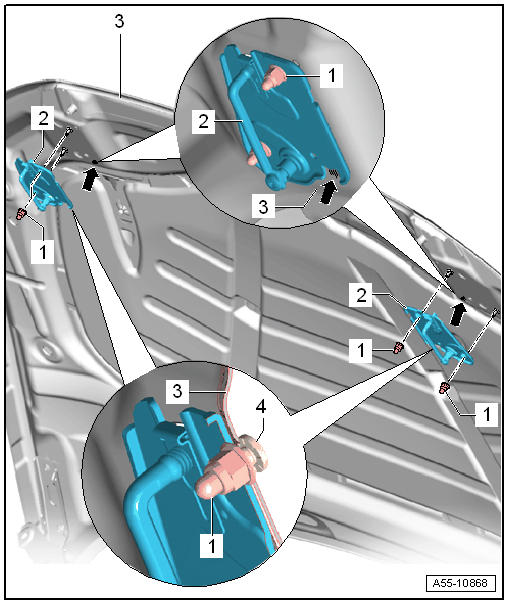

Striker, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
- Cap Nut
- Tightening specification -Item 4- OVERVIEW - HOOD - List Item:Cap Nut
- Striker
-- Mark the position of the lid catch on the hood before removing them.
-- Remove the cap nuts and hinged from the threaded pins.
-- When installing align to the markings -arrow- on the sides.
- Hood
- Threaded Pins
