Impact Guard, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

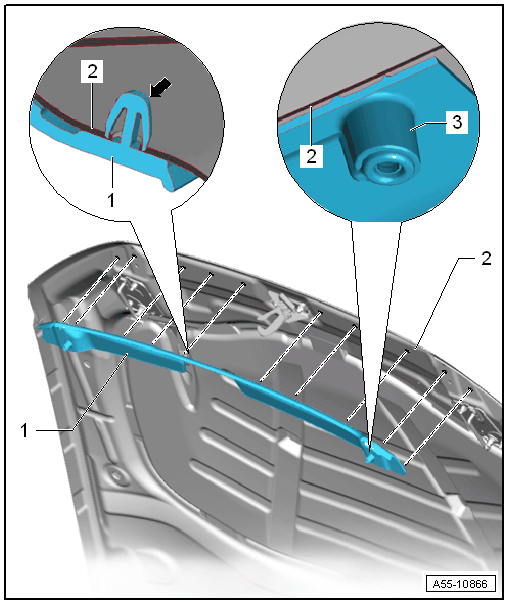

GWWA55-10866Courtesy of AUDI OF AMERICA, LLC
  1. Impact Guard
    • To remove unclip insteps and remove the impact guard.
  2. Hood
  3. Buffer
