Overview - Fuel Filler Door Unit

WARNING: This page is about a different variant/trim than selected.

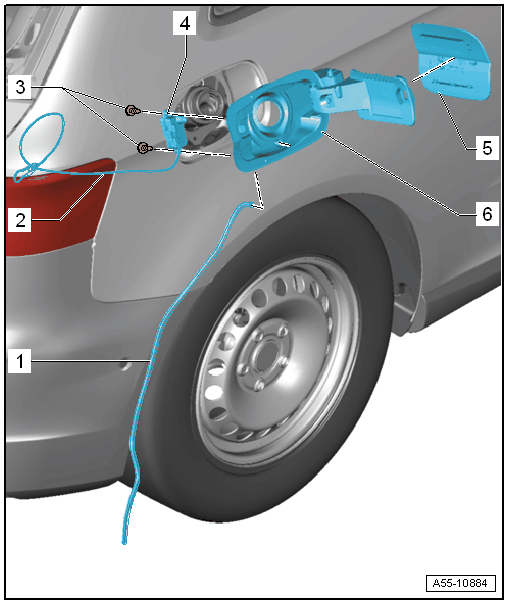

Fig 1: Exploded View Of Fuel Filler Door Unit

Courtesy of AUDI OF AMERICA, LLC

Drain Hose
Emergency Release Cable
Screws
- 1.5 Nm
Fuel Filler Door Lock Motor -V155-
- Removing
  -- Remove the cable from the luggage compartment.

  -- Remove the fuel filler door and push the cable forward through.

  -- Remove the bolt from the Fuel Filler Door Unlock Motor -V155- and remove the motor.
- Installing
  -- Place the Fuel Filler Door Unlock Motor -V155- on the fuel filler door unit and tighten the bolts -3- to the tightening specification.
Fuel Filler Door Unit Cover
Fuel Filler Door Unit
- Replace after removing.
- Removing and installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING
