Fuel Filler Door Unit Drain Hose, Removing And Installing
WARNING: This page is about a different variant/trim than selected.

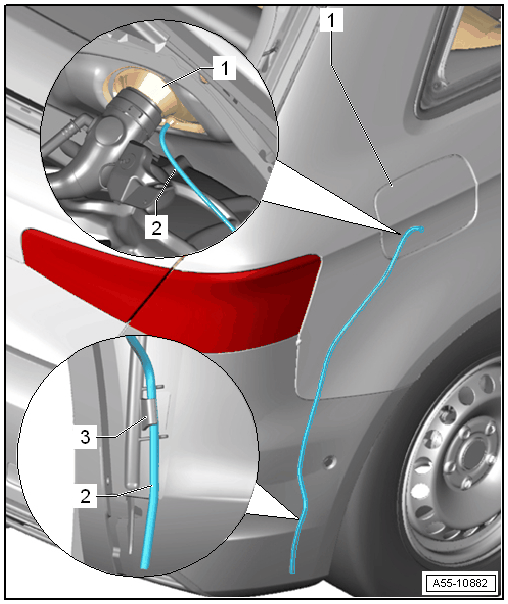

- Fuel Filler Door Unit
- Drain Hose
-- To remove first unclip below on the guide piece and remove upward through the fuel filler door unit.
-- During installation, route the drain hose under the wheel housing liner as shown and insert the clip on the lower guide piece.
- Lower Guide Piece Clip
- Loosen in the area of the wheel housing liner drain hose and press it to the side.
- Clip in the drain hose as shown on the lower guide piece.
