Emergency Release Cable, Removing And Installing
WARNING: This page is about a different variant/trim than selected.

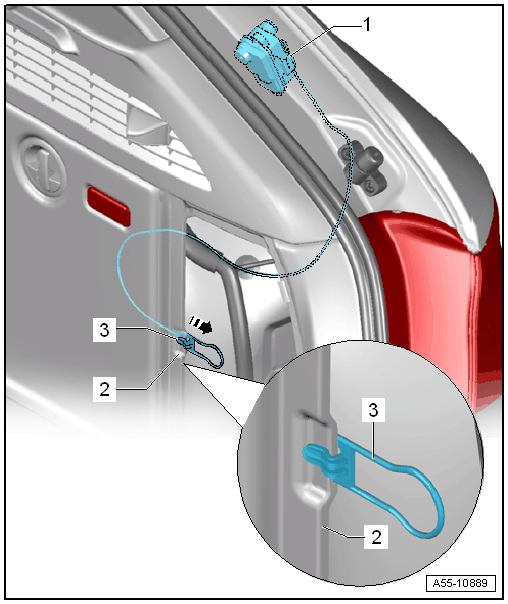

- Fuel Filler Door Lock Motor -V155-
- Mounted securely on the fuel filler door unit
- Side Panel
- Emergency Release Cable
- Place the fuel filler door unit with the Fuel Filler Door Unlock -V155- and the cable as shown over the opening for the fuel filler door.
- Pull the cable back into the vehicle interior and connect it with the tab on the flange on the side panel.
