Exhaust Air Grille, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

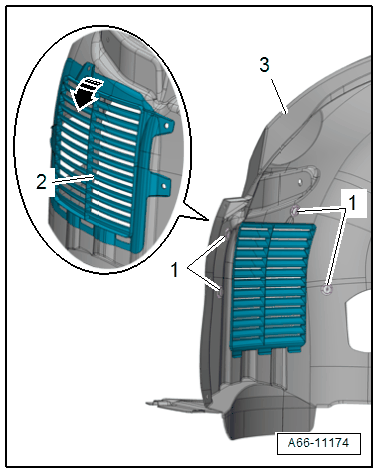

-- Remove the expanding rivets -1-.
-- Remove the grille -2- from the wheel housing liner -3- -arrow-.
