Underbody Trim Panel, Inserting Into Natural Gas Fuel Tank Mount

WARNING: This page is about a different variant/trim than selected.

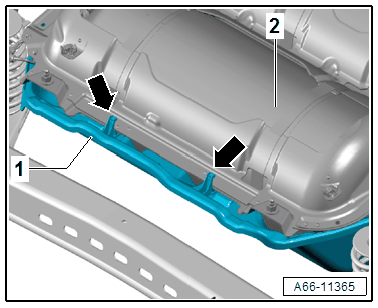

GWWA66-11365Courtesy of AUDI OF AMERICA, LLC

-- When installing the underbody panel -1-, the hooks -arrows- must be pushed into the mount for the natural gas fuel tank -2-.
