Front Underbody Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

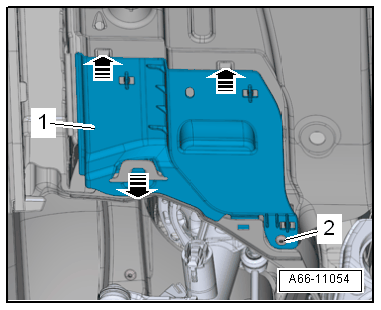

-- Remove the bolt -2-.

GWWA66-11054Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs in the direction of -arrows-.

-- Remove the front underbody panel -1- in the direction of travel rearward out of the catches.
