Front Tunnel Brace, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- If necessary, remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

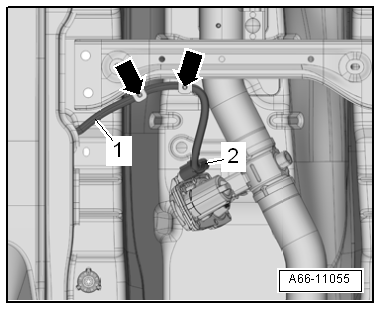

-- Vehicles with TDI engines: Free up the wiring harness -1- -arrows-.

GWWA66-11055Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

GWWA66-11002Courtesy of AUDI OF AMERICA, LLC

-- Remove the front tunnel brace -1-.
