Roof Trim Molding, Removing And Installing, Without Gloss Package: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

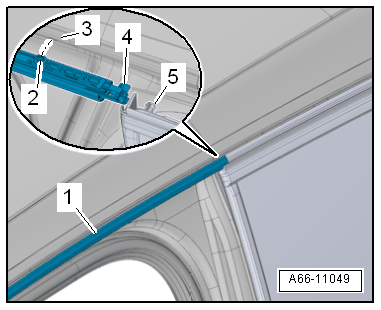

-- Engage the mount -4- from the roof trim molding -1- on the rear side window pins -5-.
-- Place the roof trim molding with the guide pins -2- on the opening -3- in the vehicle roof.
-- Push the roof trim molding onto the clips until they audibly lock engage.
