Roof Trim Molding, Removing And Installing, SPORTBACK With Gloss Package: Installing
WARNING: This page is about a different variant/trim than selected.

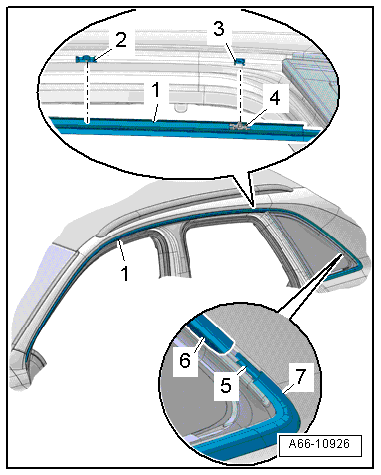

-- Install the roof trim molding -1- into the side window trim molding -7-.
- The clamp -5- must fit correctly into the guide -6-.
- The roof trim molding be touching the end of the side window trim molding.
-- Place the roof trim molding with the guide pins -4- in the clip mount -3- in the vehicle roof.
-- Push the roof trim molding in the area of the side window in the clamps and clips -2- until it engages audibly.
