Roof Trim Molding, Removing And Installing, A3 With Gloss Package: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

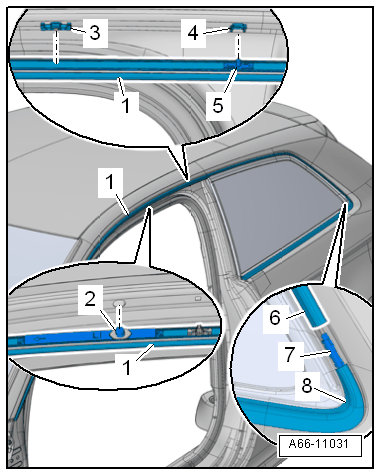

-- Install the roof trim molding -1- into the side window trim molding -8-.
- The clamp -7- must inserted correctly into the guide -6-.
- The roof trim molding be touching the end of the side window trim molding.
-- Place the roof trim molding with the centering pins -5- in the clip mount -4- and the guide pins -2- in the vehicle roof.
-- Push the roof trim molding in the area of the side window until it engages audibly in the clamps and on the clips -3-.
