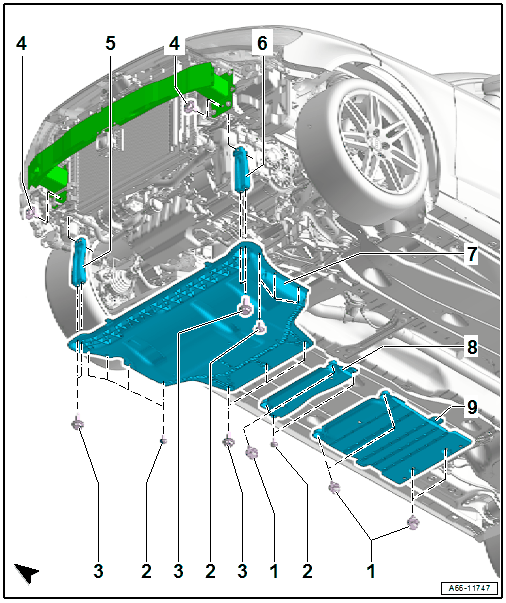

Overview - Noise Insulation, Equipment Version With Impact Guard

Courtesy of AUDI OF AMERICA, LLC

1. Expanding Rivet
   • Equipped on some models: rear noise insulation -8- (quantity: 2)
   • Equipped on some models: rear noise insulation -9- (quantity: 4)
2. Bolt
   • Quantity: 7
   • 2 Nm
3. Bolt
   • Quantity: 7
   • M8x25
   • 20 Nm
4. Bolt
   • Quantity: 2
   • 20 Nm
5. Bracket
   • Right
6. Bracket
   • Left
7. Impact Guard
8. Rear Noise Insulation
   • Equipped on some models
   • Removing and Installing. Refer to REAR NOISE INSULATION, REMOVING AND INSTALLING, VERSION 2 .
9. Rear Noise Insulation
   • Equipped on some models
   • Removing and Installing. Refer to REAR NOISE INSULATION, REMOVING AND INSTALLING, VERSION 1 .
