Overview - Tail Lamps In Rear Lid, Tail Lamps With LEDS: Notes

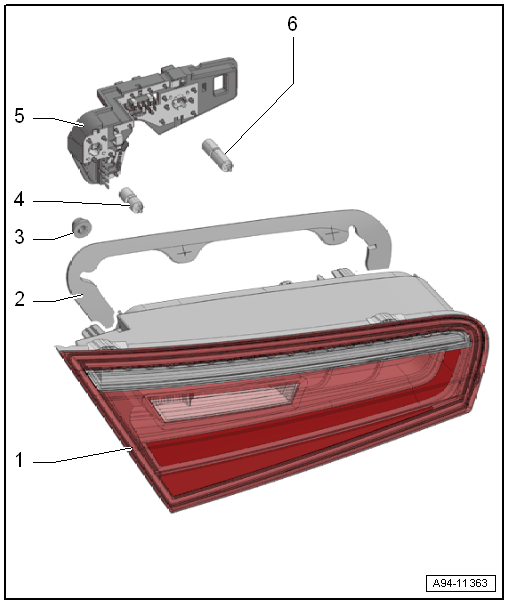

Fig 1: Exploded View Of Tail Lamps In Rear Lid (Tail Lamps With LEDs)

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Tail Lamp
   • There are different versions.
   • Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
2. Seal
   • Replace if damaged.
   • Self-adhesive
3. Nut
   • Tightening Specification and sequence. Refer to REAR LID TAIL LAMPS, TIGHTENING SPECIFICATION AND SEQUENCE
   • Quantity: 3
4. Back-Up Lamp Bulb
   • Left Back-Up Lamp Bulb -M16-
   • Right Back-Up Lamp Bulb -M17-
   • 12 V, 16 W
   • W16W
   • Bulb, replacing. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, TAIL LAMPS WITH LEDS, 3-DOOR VEHICLES .
5. Bulb Holder
6. Rear Fog Lamp Bulb
   • Left Rear Fog Lamp Bulb -L46-
   • Right Rear Fog Lamp Bulb -L47-
   • 12 V, 21 W
   • Bulb, replacing. Refer to LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, REMOVING AND INSTALLING .
