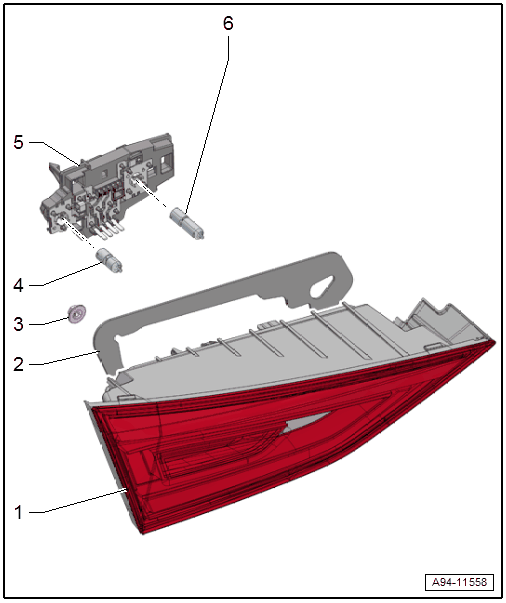

Overview - Tail Lamp In Rear Lid, Tail Lamps With LEDS: Notes
WARNING: This page is about a different variant/trim than selected.
- Rear Lid Tail Lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Seal
- Replace if damaged.
- Self-adhesive
- Nut
- Tightening Specification and sequence. Refer to REAR LID TAIL LAMPS, TIGHTENING SPECIFICATION AND SEQUENCE
- Quantity: 3
- Back-Up Lamp Bulb
- Version
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- 12 V, 16 W
- W16W
- Bulb, Replacing. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, TAIL LAMPS WITH LED .
- Bulb Holder
- Version
- Rear Fog Lamp Bulb
- Version
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- 12 V, 21 W
- Bulb, Replacing. Refer to LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, REMOVING AND INSTALLING, TAIL LAMPS WITH LED .
