Overview - Tail Lamp In Rear Lid, Tail Lamps With Bulbs: Notes

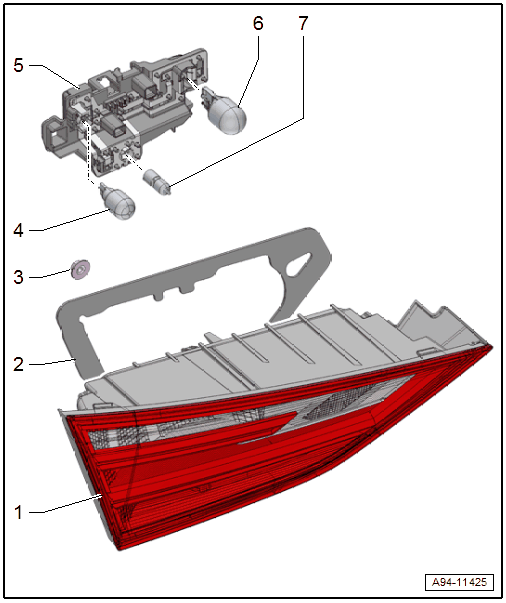

Fig 1: Exploded View Of Tail Lamp In Rear Lid With Bulbs

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Tail Lamp
   • Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
2. Seal
   • Replace if damaged.
   • Self-adhesive
3. Nut
   • Tightening specification and sequence. Refer to REAR LID TAIL LAMPS, TIGHTENING SPECIFICATION AND SEQUENCE
   • Quantity: 3
4. Tail Lamp Bulb
   • Right Tail Lamp Bulb -M2-
   • Left Tail Lamp Bulb -M4-
   • 12 V, 16 W (W16W)
   • Bulb, replacing. Refer to RIGHT/LEFT TAIL LAMP BULB -M2- / -M4-, REMOVING AND INSTALLING .
5. Bulb Holder
6. Rear Parking/Fog Lamp Bulb
   • Left Rear Parking/Fog Lamp Bulb -M41-
   • Right Rear Parking/Fog Lamp Bulb -M42-
   • 12 V, 21 W (W21W)
   • Bulb, replacing. Refer to LEFT/RIGHT REAR PARKING/FOG LAMP BULB -M41- / -M42-, REMOVING AND INSTALLING, TAIL LAMPS WITH BULBS .
7. Back-Up Lamp Bulb
   • Left Back-Up Lamp Bulb -M16-
   • Right Back-Up Lamp Bulb -M17-
   • 12 V, 6 W (W6W)
   • Bulb, replacing. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, TAIL LAMPS WITH BULBS .
