Overview - Body Tail Lamps, Tail Lamps With Led

WARNING: This page is about a different variant/trim than selected.

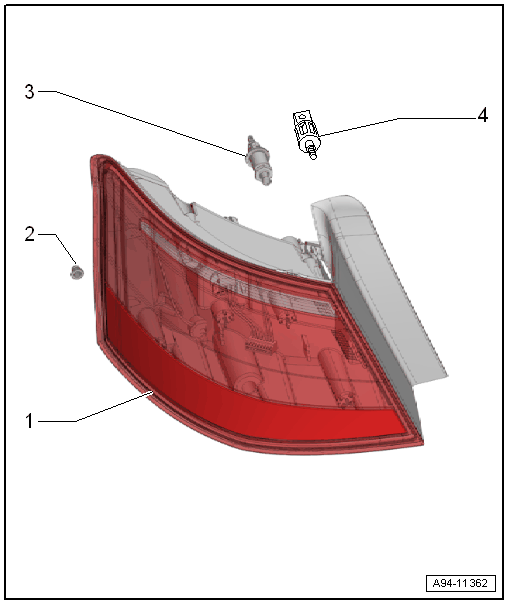

Fig 1: Exploded View Of Body Tail Lamps With LED (CXUA)

Courtesy of AUDI OF AMERICA, LLC

Body Tail Lamp
- There are different versions.
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
Clip Nut
- Quantity: 2
Adjuster
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION, 3-AND 5-DOOR VEHICLES .
Threaded Studs
- 3.5 Nm

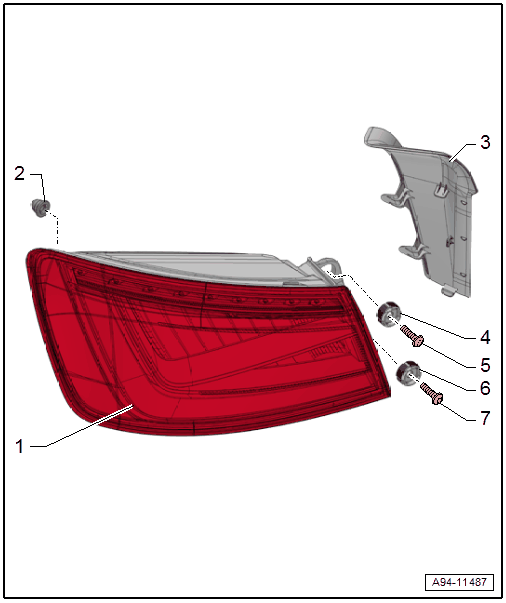

Fig 1: Exploded View Of Body Tail Lamps With LED (CNSA, CNTA, CNSB, CNTC, CYFB, CRUA)

Courtesy of AUDI OF AMERICA, LLC

Body Tail Lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
Clip Nut
- Quantity: 2
Cover
- For body tail lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
Adjusting Nut
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
Bolt
- 3.5 Nm
Adjusting Nut
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
Bolt
- 3.5 Nm
