Overview - Body Tail Lamps, Tail Lamps With Bulbs

WARNING: This page is about a different variant/trim than selected.

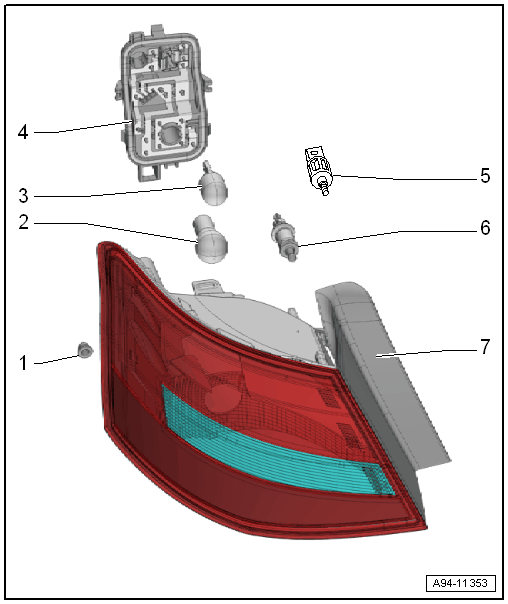

Fig 1: Exploded View Of Body Tail Lamps With Bulbs (CXUA)

Courtesy of AUDI OF AMERICA, LLC

Clip Nut
- Quantity: 2
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, replacing. Refer to TURN SIGNAL BULB, REMOVING AND INSTALLING .
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-
- Right Brake/Tail Lamp Bulb -M22-
- 12 V, 21 W
- Bulb, replacing. Refer to LEFT/RIGHT BRAKE/TAIL LAMP BULB -M21- / -M22-, REMOVING AND INSTALLING .
Bulb Holder
Threaded Studs
- 3.5 Nm
Adjuster
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION, 3-AND 5-DOOR VEHICLES .
Body Tail Lamp
- There are different versions.
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .

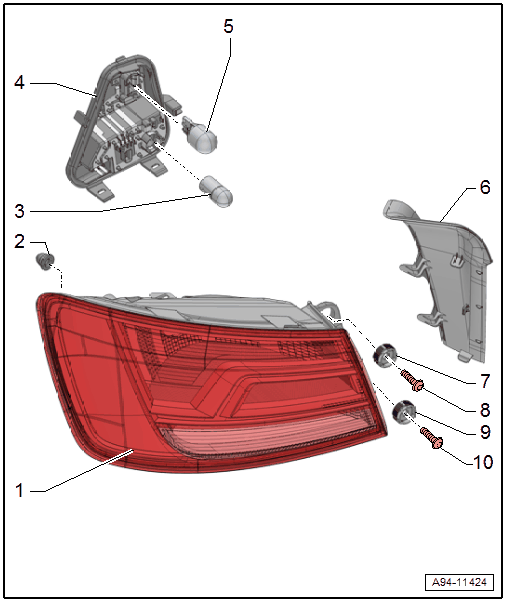

Fig 1: Exploded View Of Body Tail Lamps With Bulbs (CNSA, CNTA, CNSB, CNTC, CYFB and CRUA)

Courtesy of AUDI OF AMERICA, LLC

Body Tail Lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
Clip Nut
- Quantity: 2
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-, Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, replacing. Refer to LEFT/RIGHT REAR TURN SIGNAL BULB -M6- / -M8-, REMOVING AND INSTALLING .
Bulb Holder
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-
- Right Brake/Tail Lamp Bulb -M22-
- 12 V, 21 W
- Bulb, replacing. Refer to LEFT/RIGHT BRAKE/TAIL LAMP BULB -M21- / -M22-, REMOVING AND INSTALLING .
Cover
- For body tail lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
Adjusting Nut
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
Bolt
- 3.5 Nm
Adjusting Nut
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
Bolt
- 3.5 Nm
