Left/Right Rear Parking/Fog Lamp Bulb -M41- / -M42-, Removing And Installing, Tail Lamps With Bulbs: Removing

-- Turn the light switch to position "0".

-- Insert a small screwdriver into the opening -arrow A- and remove the cover -1- in the direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles Through My 2016

Courtesy of AUDI OF AMERICA, LLC

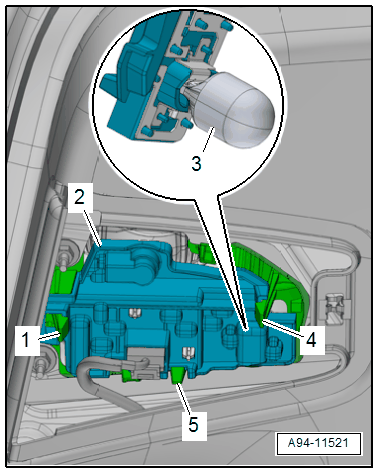

-- Disconnect the connector -5-.

-- Release the locking brackets -1 and 4- and remove the bulb socket -2- from the housing.

-- Remove the tail lamp bulb -3- from the bulb carrier.

Vehicles From My 2017

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Release the locking brackets -1- and remove the bulb socket -2- from the housing.

-- Remove the tail lamp bulb -4- from the bulb holder.

-- Turn the light switch to position "0".

-- Release the cover -1- from the clip in direction of -arrow- using the :3409  .

Courtesy of AUDI OF AMERICA, LLC

-- Release the locking brackets -1, 4 and 5- and remove the bulb socket -2- from the housing.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamp bulb -3- from the bulb carrier.
