Left/Right Rear Fog Lamp Bulb -L46- / -L47-, Removing And Installing, Tail Lamps With Led: Removing

-- Turn the light switch to position "0".

-- Insert a small screwdriver into the opening -arrow A- and remove the cover -1- in the direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

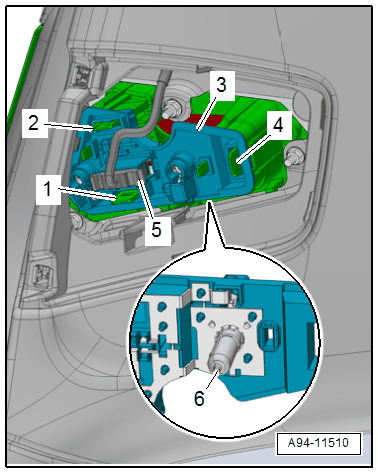

-- Release the locking brackets -1, 2 and 4- and remove the bulb socket -3- from the housing.

-- Remove the tail lamp bulb -6- from the bulb carrier.

-- Turn the light switch to position "0".

-- Release the cover -1- from the clip in the direction of -arrow- using the :3409  .

Courtesy of AUDI OF AMERICA, LLC

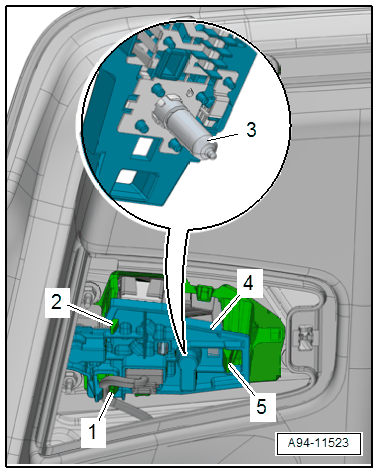

-- Release the locking brackets -1, 2 and 5- and remove the bulb socket -4- from the housing.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the back-up lamp bulb -3- from the bulb carrier.
