Left/Right Brake/Tail Lamp Bulb -M21- / -M22-, Removing And Installing, : Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the tail lamp. Refer to TAIL LAMP, REMOVING AND INSTALLING .

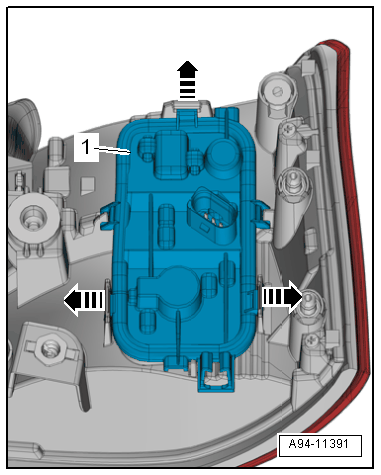

-- Push the locking bracket in direction of -arrow- and remove the bulb socket -1- from the housing.

GWWA94-11391Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake/tail lamp bulb from the bulb carrier.
