Rear Parking Aid Sensor, Removing And Installing: Removing
OUTER SENSORS
-- Press both tabs in direction of -arrows- to the side and press the sensor -3- inward from the outside.
-- Disconnect the connector -2- by sliding the retainer -1- back and pressing the release down.
INNER SENSOR

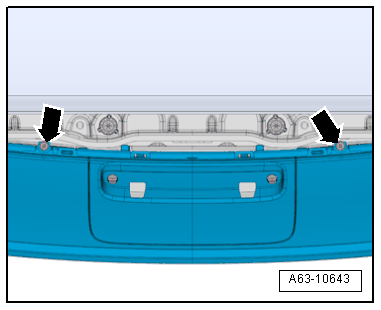

-- For vehicles without a trailer hitch, remove the bolts -arrows-.
-- For vehicles with a trailer hitch, remove the Rear Bumper Cover. Refer to OVERVIEW - REAR BUMPER COVER / REAR BUMPER COVER, REMOVING AND INSTALLING .
-- Press both tabs in direction of -arrows- to the side and press the sensor -3- inward from the outside.
-- Disconnect the connector -2- by sliding the retainer -1- back and pressing the release down.
If the sensor cannot be removed as described on vehicles without a trailer hitch, the rear Bumper Cover Must Be Removed. Refer to OVERVIEW - REAR BUMPER COVER / REAR BUMPER COVER, REMOVING AND INSTALLING .
