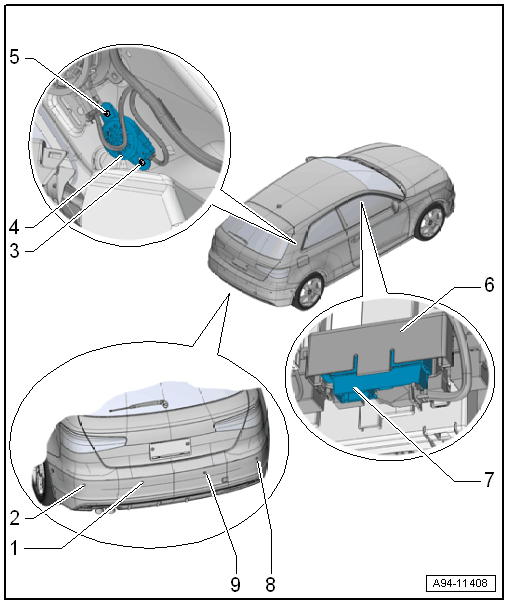

Overview - Rear Parking Aid
WARNING: This page is about a different variant/trim than selected.
- Left Rear Center Parking Aid Sensor -G204-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Parking Aid Sensor -G203-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Expanding Clip
- Rear Parking Aid Warning Buzzer -H15-
- Removing and installing. Refer to REAR PARKING AID WARNING BUZZER -H15-, REMOVING AND INSTALLING .
- Expanding Clip
- Bracket
- For the control module
- Parking Aid Control Module -J446-
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
- Right Rear Parking Aid Sensor -G206-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Rear Center Parking Aid Sensor -G205-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
