High-Mounted Brake Lamp Bulb -M25-, Removing And Installing: Removing

-- Remove the spoiler. Refer to SPOILER, REMOVING AND INSTALLING .

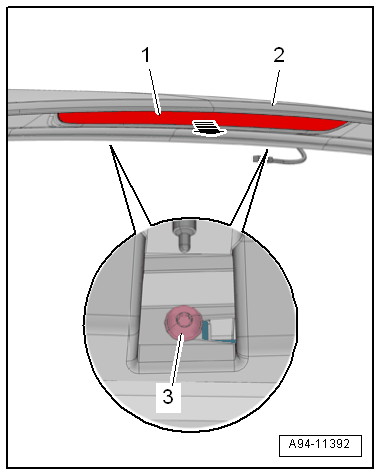

-- Remove the bolts -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the high-mounted brake lamp bulb -1- from the roof spoiler -2- and guide out the wiring harness through the opening.

-- Do not press brake pedal.

-- Loosen The Headliner From The Body Near The High-Mounted Brake Lamp. Refer to HEADLINER, REMOVING AND INSTALLING .

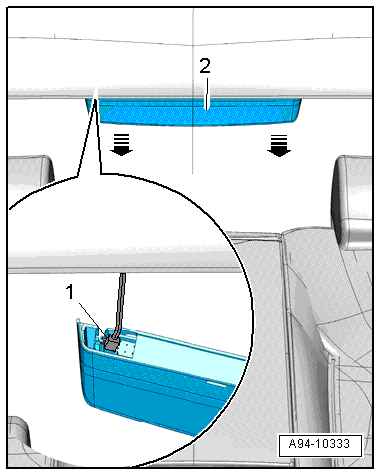

-- Pull the high-mounted brake lamp -2- back evenly by the cover in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Do not press brake pedal.

-- Remove The Rear Lid Trim Panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

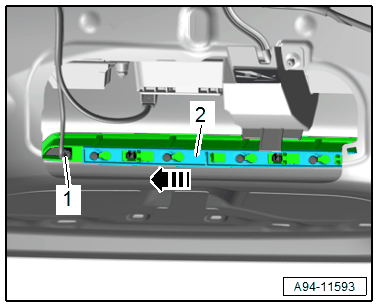

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -2- to the left -arrow- and remove.

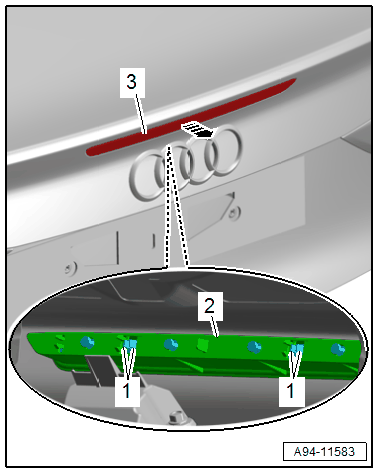

-- Open the clips -1- and remove the mount -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the lamp -3- out of the flap -arrow-.
