Overview - Headlamps, Hid Headlamps From My 2017

WARNING: This page is about a different variant/trim than selected.

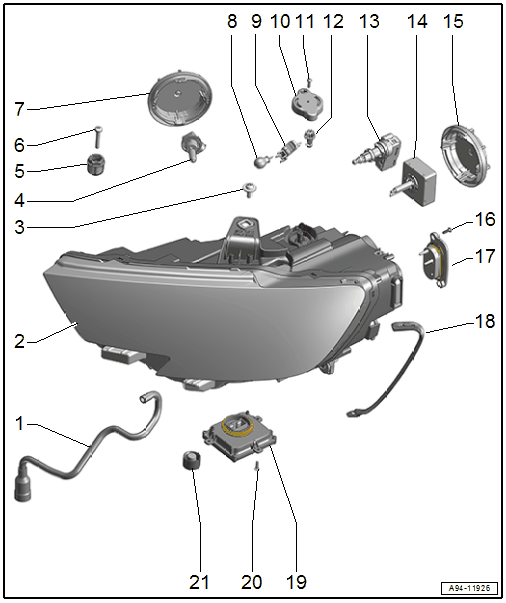

Fig 1: Exploded View Of Headlamps (HID Headlamp From MY 2017)
GWWA94-11926Courtesy of AUDI OF AMERICA, LLC
  1. Breather Hose
    • For headlamp
  2. Headlamps
    • The Left Front Side Marker Lamp Bulb -M33- /Right Front Side Marker Lamp Bulb -M34- is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
  3. Bolt
    • 4.5 Nm
  4. All Weather Lamp Bulb
  5. Adjusting Nut
    • Quantity: 2
    • For the headlamp height adjustment
  6. Bolt
    • 4.5 Nm
    • Quantity: 2
  7. Housing Cover
  8. Front Turn Signal Bulb
  9. Removal Aid
    • For turn signal lamp
  10. Adapter
    • For the height adjustment
  11. Bolt
    • 1 Nm
  12. Height Adjustment Screw
    • With gasket
  13. Headlamp Beam Adjustment Motor
  14. HID Headlamp Bulb
  15. Housing Cover
  16. Bolt
    • 1.5 Nm
    • Quantity: 2
  17. Daytime Running Lamp and Position Lamp LED Module
  18. Sealing Frame
  19. Daytime Running Lamp and Position Lamp Control Module
  20. Bolt
    • 1.5 Nm
    • Quantity: 3
  21. Filter Membrane
