Overview - Headlamps, Hid Headlamp Through My 2016

WARNING: This page is about a different variant/trim than selected.

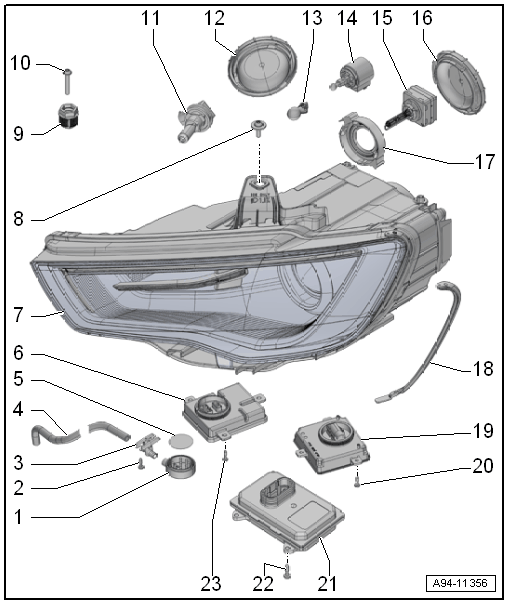

Fig 1: Exploded View Of Headlamps (HID Headlamp Through MY 2016)
GWWA94-11356Courtesy of AUDI OF AMERICA, LLC
  1. Ventilation
    • For headlamp
  2. Bolt
    • 1 Nm
    • Quantity: 2
  3. Bracket
    • For ventilation hose
  4. Ventilation Hose
    • For headlamp
  5. Filter Membrane
  6. HID Headlamp Control Module
  7. Headlamps
    • The Left and Right Daytime Running Lamp and Position Lamp LED Module -L176- / -L177- cannot be replaced if faulty, the headlamp must be completely replaced
    • The Left Front Side Marker Lamp Bulb -M33- /Right Front Side Marker Lamp Bulb -M34- is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP THROUGH MY 2016 .
  8. Bolt
    • 4.5 Nm
  9. Adjusting Nut
    • Quantity: 2
    • For the headlamp height adjustment
  10. Bolt
    • 4.5 Nm
    • Quantity: 2
  11. Cornering Lamp Bulb
  12. Housing Cover
  13. Front Turn Signal Bulb
  14. Headlamp Beam Adjustment Motor
  15. HID Headlamp Bulb
  16. Housing Cover
  17. Adapter Ring
    • For HID headlamp bulb
    • Only for vehicle equipment versions with cornering lamps
  18. Sealing Frame
  19. Daytime Running Lamp and Position Lamp Control Module
  20. Bolt
    • 1.5 Nm
    • Quantity: 3
  21. Headlamp Power Output Stages
  22. Bolt
    • 1.5 Nm
    • Quantity: 3
  23. Bolt
    • 1.5 Nm
    • Quantity: 3
