Overview - Headlamp, Led Headlamp Through My 2016
WARNING: This page is about a different variant/trim than selected.

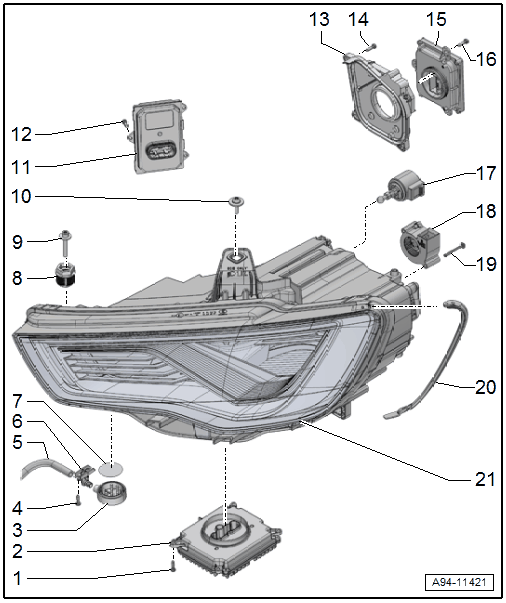

- Bolt
- 1.5 Nm
- Quantity: 4
- LED Headlamp Power Output Stage 1
- For low beam
- Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
- Removing and installing. Refer to RIGHT/LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING THROUGH MY 2016 .
- Ventilation
- For headlamp
- Bolt
- 1 Nm
- Quantity: 2
- Ventilation Hose
- For headlamp
- Bracket
- For ventilation hose
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2016 .
- Adjusting Nut
- For the headlamp height adjustment
- Quantity: 2
- Bolt
- 4.5 Nm
- Quantity: 2
- Bolt
- 4.5 Nm
- Headlamp Power Output Stages
- Left Headlamp Power Output Stage -J667-
- Right Headlamp Power Output Stage -J668-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP POWER OUTPUT STAGE -J667- / -J668-, REMOVING AND INSTALLING, LED HEADLAMPS THROUGH MY 2016 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Housing Cover
- Bolt
- 1.5 Nm
- Quantity: 4
- Daytime Running Lamp and Position Lamp Control Module
- Left Daytime Running Lamp and Position Lamp Control Module -J860-
- Right Daytime Running Lamp and Position Lamp Control Module -J861-
- Removing and installing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP CONTROL MODULE -J860- / -J861-, REMOVING AND INSTALLING, LED HEADLAMPS THROUGH MY 2016 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS THROUGH MY 2016 .
- Headlamp Fan
- Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP FAN -V407- / -V408-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Headlamps
- The Left Front Side Marker Lamp Bulb -M33- /Right Front Side Marker Lamp Bulb -M34- is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP THROUGH MY 2016 .
