Overview - Headlamp, Led Headlamp From My 2017

WARNING: This page is about a different variant/trim than selected.

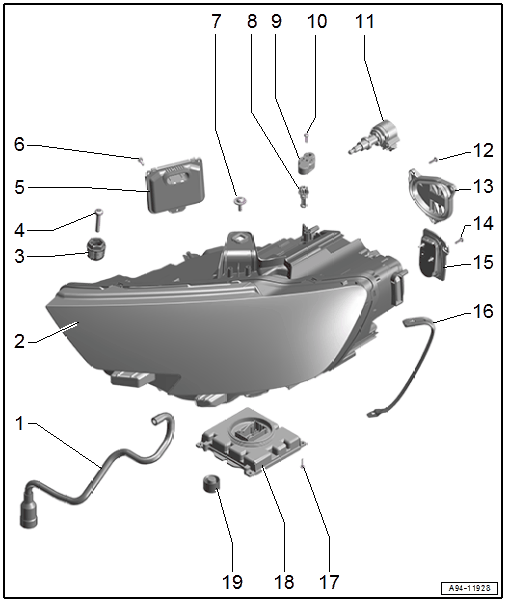

GWWA94-11928Courtesy of AUDI OF AMERICA, LLC
  1. Breather Hose
    • For headlamp
  2. Headlamps
    • The Left Front Side Marker Lamp Bulb -M33- /Right Front Side Marker Lamp Bulb -M34- is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
  3. Adjusting Nut
    • For the headlamp height adjustment
    • Quantity: 2
  4. Bolt
    • 4.5 Nm
    • Quantity: 2
  5. Control Module for Light Control
  6. Bolt
    • 1.5 Nm
    • Quantity: 3
  7. Bolt
    • 4.5 Nm
  8. Height Adjustment Screw
    • With gasket
  9. Adapter
    • For the height adjustment
  10. Bolt
    • 1 Nm
  11. Headlamp Beam Adjustment Motor
  12. Bolt
    • 1.5 Nm
    • Quantity: 3
  13. Housing Cover
  14. Bolt
    • 1.5 Nm
    • Quantity: 3
  15. Daytime Running Lamp and Position Lamp LED Module
  16. Sealing Frame
  17. Bolt
    • 1.5 Nm
    • Quantity: 4
  18. LED Headlamp Power Output Module 1
  19. Filter Membrane
