Overview - Headlamp, Halogen Headlamps

WARNING: This page is about a different variant/trim than selected.

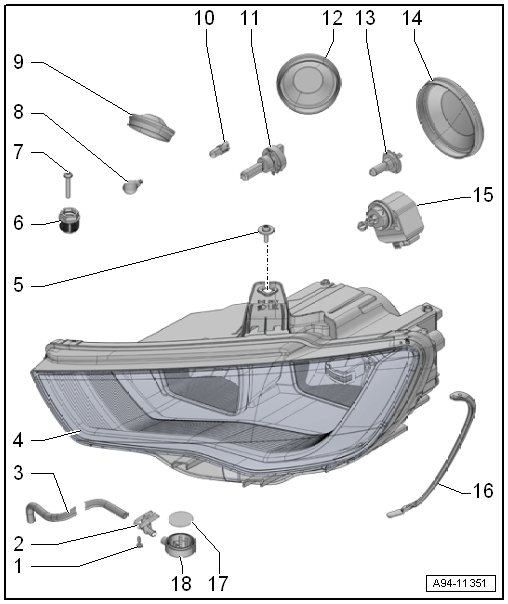

Fig 1: Exploded View Of Headlamp (Halogen Headlamps)
GWWA94-11351Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 1 Nm
    • Quantity: 2
  2. Bracket
    • For ventilation hose
  3. Ventilation Hose
    • For headlamp
  4. Headlamps
    • The Left Front Side Marker Lamp Bulb -M33- /Right Front Side Marker Lamp Bulb -M34- is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS .
  5. Bolt
    • 4.5 Nm
  6. Adjusting Nut
    • For the headlamp height adjustment
    • Quantity: 2
  7. Bolt
    • 4.5 Nm
    • Quantity: 2
  8. Front Turn Signal Bulb
  9. Housing Cover
  10. Position Lamp Bulb
  11. Daytime Running Lamp Bulb/High Beam Headlamp Bulb
  12. Housing Cover
  13. Low Beam Headlamp Bulb
  14. Housing Cover
  15. Headlamp Beam Adjustment Motor
  16. Sealing Frame
  17. Filter Membrane
  18. Ventilation
    • For headlamp
