Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not press the flasher.

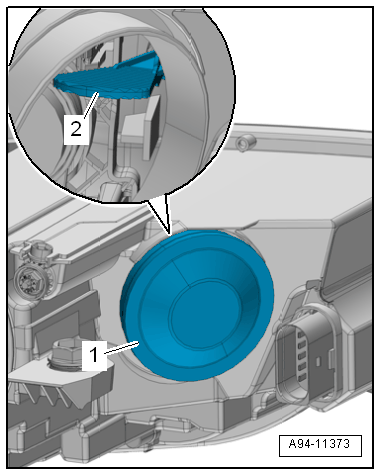

-- Remove the housing cover -1- from the headlamp.

GWWA94-11373Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb socket -2- from the housing.

-- Remove the bulb from the socket.
