Left/Right Light Control Module -J1018- / -J1023-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

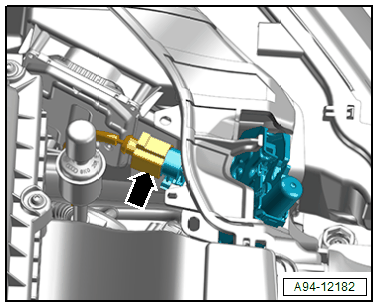

GWWA94-12182Courtesy of AUDI OF AMERICA, LLC

Audi RS3 left side of the vehicle: disconnect the connector -arrow-.

-- Remove the bolts -arrows-.

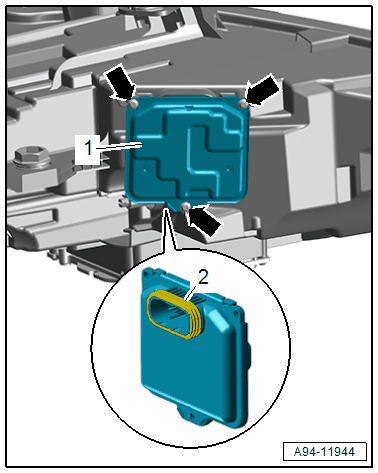

GWWA94-11944Courtesy of AUDI OF AMERICA, LLC

-- Remove the power output module -1-.
