Left/Right Hid Headlamp Control Module -J343- / -J344-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP THROUGH MY 2016 .

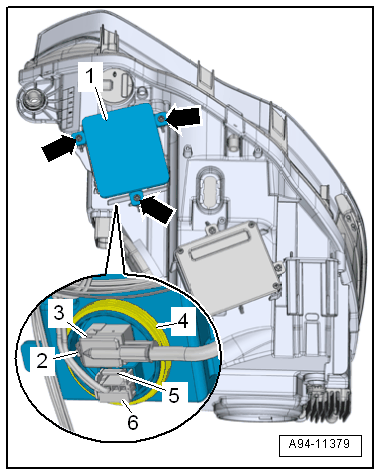

-- Remove the bolts -arrows-.
-- Remove the control module -1- from the headlamp.
-- Press the tabs -2 and 5- and disconnect the adapter cable -3- and connector -6-.
-- Remove the control module.
