Left And Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing, Vehicles From My 2017: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Do not operate the flashers.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

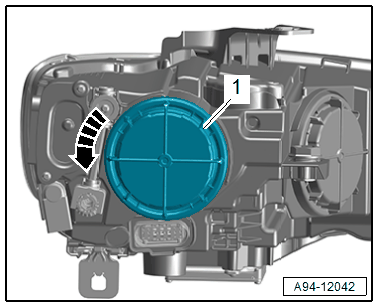

-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp.

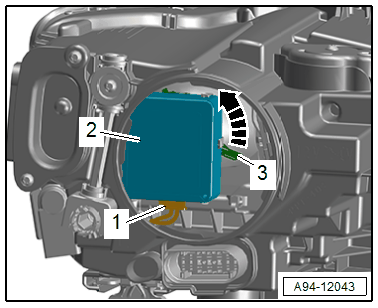

-- Turn locking ring -3- in the direction of -arrow- and remove the HID headlamp bulb -2- from housing.
-- Press down on release to disconnect the connector -1-.
