Left/Right Headlamp Fan -V407- / -V408-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Do not press the flasher.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

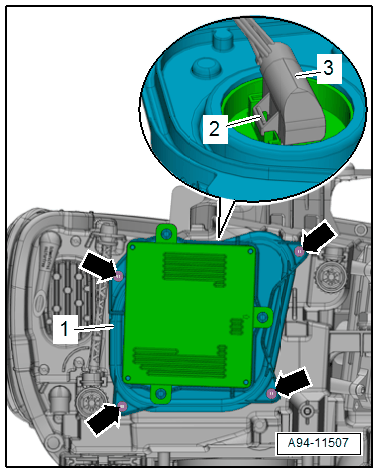

-- Remove the bolts -arrows-.
-- Remove the housing cover -1- and disconnect the connector -3- by pressing the release button -2-.

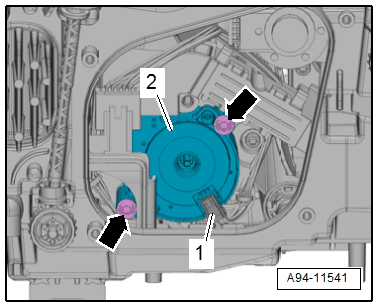

-- Remove the bolts -arrows-.
-- Remove the fan -2- from the headlamp housing.
-- Disconnect the connector -1-.
