Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Hid Headlamps: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Do not press the flasher.

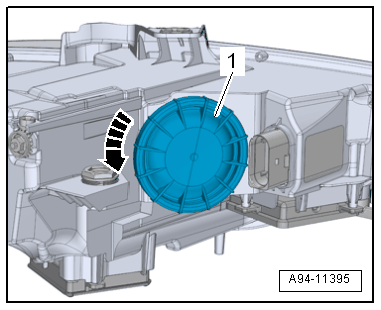

-- Turn the housing cover -1- counter-clockwise in direction of -arrow- and remove it from the headlamp.

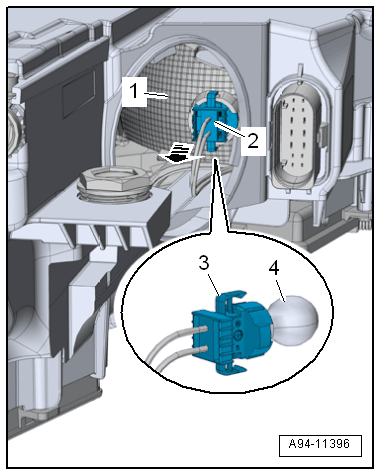

-- Remove the bulb socket -2- from the housing -1- -arrow-.
-- Remove the bulb -3- from the bulb socket -4-.
NOTE:
If the right turn signal bulb cannot be removed as described on vehicles with a TDI engine, then the fuel filter must be detached and set aside with the lines attached. Refer to FUEL FILTER, REMOVING AND INSTALLING [CRUA] / OVERVIEW - FUEL TANK [CNTC, CNSB] .
