Left/Right Daytime Running Lamp And Position Lamp Control Module -J860- / -J861-, Removing And Installing, Led Headlamps Through My 2016: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn the light switch to position "0".
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Do not press the flasher.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

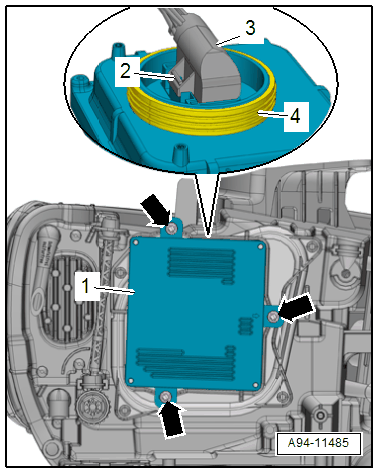

-- Remove the bolts -arrows-.
-- Remove the control module -1- from the headlamp.
-- Press the release -2- button and disconnect the connector -3-.
-- Remove the control module.
