Left And Right Daytime Running Lamp And Position Lamp Control Module -J860- / -J861-, Removing And Installing, Hid Headlamps From My 2017: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .

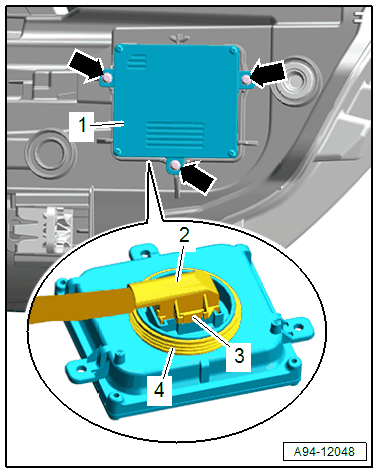

-- Remove the bolts -arrows-.
-- Remove the control module -1- from the headlamp.
-- Press the release button -2- and disconnect the connector -3-.
-- Remove the control module.
