Left/Right All Weather Lamp Bulb -M109- / -M110-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

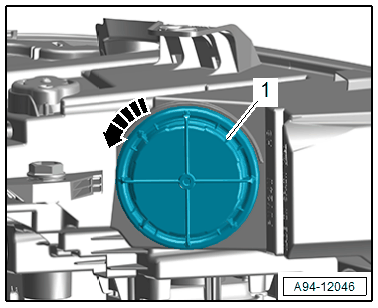

-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp housing.

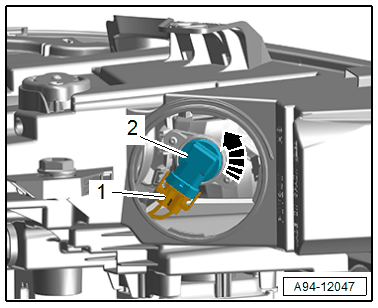

-- Disconnect the connector -1-.
-- Release the bulb socket -2- from the left headlamp by turning it counter-clockwise -arrow- and from the right headlamp by turning it clockwise.
-- Remove the bulb socket.
