Left And Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Do not operate the flashers.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

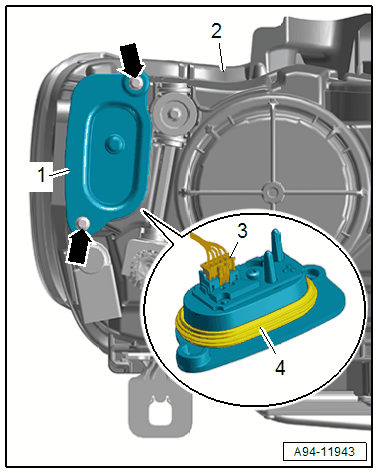

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the LED module -1- from the headlamp housing -2-.

-- Press the release button and disconnect the connector -3-.
