Matrix Led Headlamp, Calibrating Using Headlamp Adjusting Unit: Vas5209B: Procedure
-- Align the headlamp adjusting unit :VAS5209B at the distance -a- = 100 mm to the vehicle center. Refer to the VAS5209B Owner's Manual.

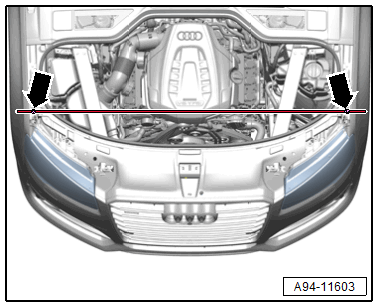

-- Check the parallel alignment of the :VAS5209B to the vehicle transverse axis. To do so, align the laser beam of the :VAS5209B to the left and right front fender bolts -arrows-.
-- Push the :VAS5209B in front of the left headlamp and check the parallel alignment again.
- To prevent a glare for other motorists, pay attention to the exact orientation of the headlamp adjusting unit.
Calibrating Procedure
The Vehicle Diagnostic Tester is connected.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Body
- Electrical equipment
- 01 - OBD-capable systems
- 09 - Vehicle Electrical System Control Module J519
- 09 - Vehicle Electrical System Control Module functions
- 09 - Adjusting headlamps
Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display. The low beam must be adjusted first for this procedure. Refer to LED HEADLAMP, ADJUSTING, VEHICLES FROM MY 2017 .
Further along in the program sequence a request is made to determine/read and to input the angle value of the inner segment edge of the left headlamp in the headlamp adjusting unit.
-- Center the light collecting box lens to the headlamp reference segment.
-- In the main menu of the :VAS5209B press the "F1" button -arrow- to measure the angle value.
Shown on display:
-- Push the button -arrow- for the left fog lamp for at least three seconds.
Shown on display:
- The angle values of the inner reference segment edge are displayed.
-- Enter the angle value -arrow- of the inner reference segment edge in the Vehicle Diagnostic Tester. While doing so, pay attention to the sign if necessary.
-- Push the "F4" button -arrow- on the :VAS5209B .
Further along in the program sequence a request is made to determine/read and to input the angle value of the inner segment edge of the right headlamp in the headlamp adjusting unit.
-- Align the :VAS5209B at the distance -a- = 100 mm to the center of the vehicle. Refer to the VAS5209B Owner's Manual.
-- Check the parallel alignment of the :VAS5209B to the vehicle transverse axis. To do so, align the laser beam of the :VAS5209B to the left and right front fender bolts -arrows-.
-- Push the :VAS5209B in front of the right headlamp and check the parallel alignment again.
-- Center the light collecting box lens to the headlamp reference segment.
-- In the main menu of the :VAS5209B , press the "F1" button -arrow- to measure the angle value.
Shown on display:
-- Push the button -arrow- for the right fog lamp for at least three seconds.
Shown on display:
- The angle values of the inner reference segment edge are displayed.
-- Enter the angle value -arrow- of the inner reference segment edge in the Vehicle Diagnostic Tester. While doing so, pay attention to the sign if necessary.
-- Push the "F4" button -arrow- on the :VAS5209B .
-- After completing the calibration, read the DTC memory and correct any existing faults.
