Headlamp, Removing And Installing, Vehicles From My 2017: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Do not operate the flashers.

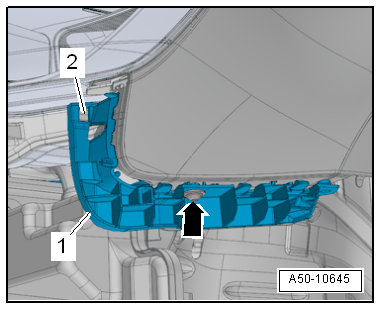

-- Audi A3: remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1- forward. Do not damage the headlamp guide -2-.

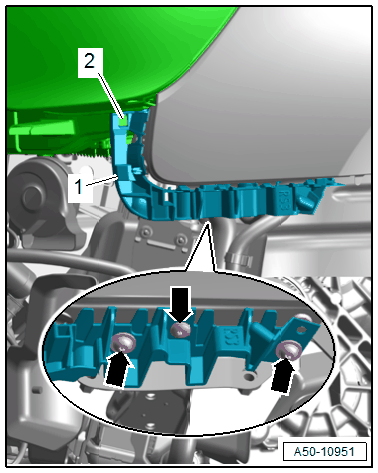

-- Audi RS3: remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1- forward. Do not damage the headlamp guide -2-.

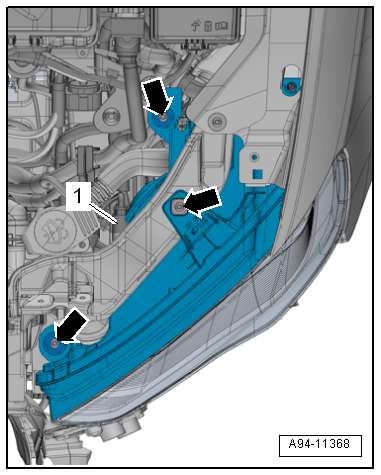

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Right: free up the wiring harness.

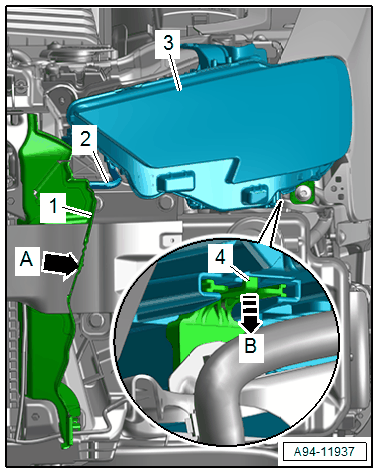

-- Open the air duct -1- at the separating point -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the bleeder hose -2-.

-- Release the securing tab -4- in the direction of -arrow B- and remove the headlamp -3- toward the front.
