Headlamp, Removing And Installing, Halogen Headlamps: Removing

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not press the flasher.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1- forward. Do not damage the headlamp guide -2-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

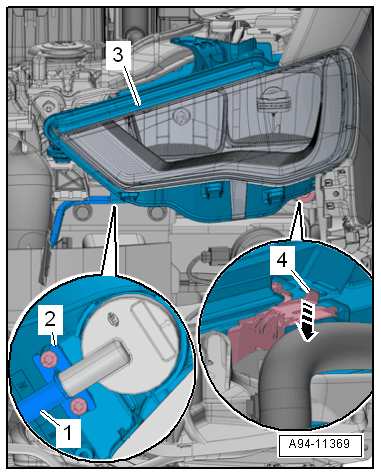

-- Remove the ventilation hose -1- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the securing tab -4- in direction of -arrow- and remove the headlamp -3- toward the front.
