Headlamp Mount, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

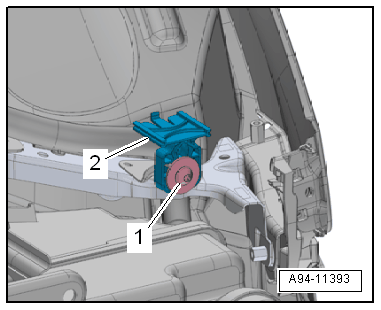

-- Remove the bolt -1-.

GWWA94-11393Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp mount -2-.
