Headlamp Mount, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal. Note The Following :
-- Insert the headlamp mount and hand-tighten the bolt.
-- Install the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

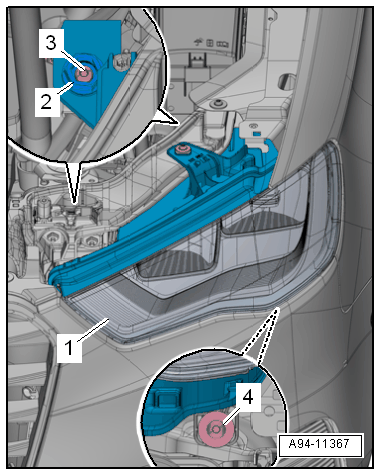

-- Align the headlamp -1- according to the body contour gap dimensions.
- Gap dimension = even gap dimension.
-- If necessary, twist the nut -2- to adjust the height.
-- Tighten the screws -3 and 4- while aligning the headlamp so that it sits flush with the out edge of the fender.
-- Check gap dimensions again, repeat adjustment of gap dimensions if necessary, as described above.
-- Adjust the headlamp. Refer to HEADLAMP, ADJUSTING .
