Left/Right Front Fog Lamp Bulb -L22- / -L23-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the fog lamp. Refer to FOG LAMP, REMOVING AND INSTALLING .

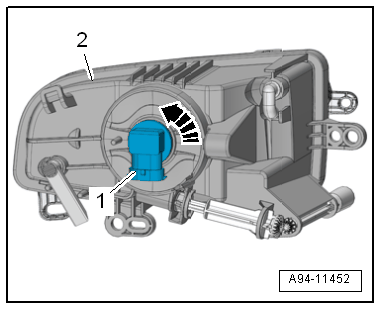

-- Rotate the bulb -1- counterclockwise in direction of -arrow- and remove it from the fog lamp housing -2-.

GWWA94-11452Courtesy of AUDI OF AMERICA, LLC
