Fog Lamp, Removing And Installing: Removing

-- Turn off the ignition.

-- Vehicle equipment version with mechanical ignition switch: Remove the key.

-- Vehicle equipment version with electronic ignition switch: Remove the key from the vehicle.

-- Turn the light switch to position "0".

-- Remove the air intake grille. Refer to OVERVIEW - BUMPER COVER / AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 WITHOUT SIDE AUXILIARY RADIATOR, THROUGH MY 2016 / AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 AND S3 WITH SIDE AUXILIARY RADIATOR .

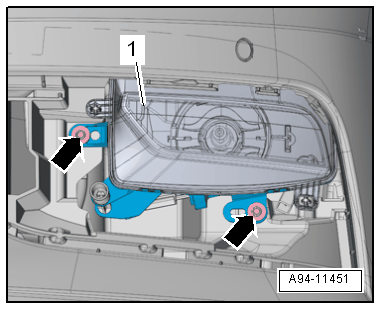

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fog lamp -1- from the bumper cover.

-- Disconnect the connector.
