Fog Lamp, Adjusting: Procedure

WARNING: This page is about a different variant/trim than selected.

-- The vehicle must be standing on a flat surface.

-- Turn the headlamp switch to "low beam" - not "Auto".

-- Press the "fog lamp" button.

Headlamp Adjustment

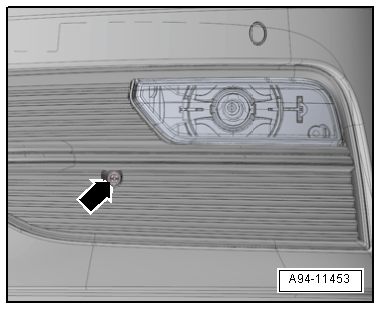

-- To adjust headlamp range, turn the adjusting screw -arrow-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The percentage indicator is based on a 10 meter projection distance. At an angle dimension of 2.0%, for example, converts to 20 cm.

Side adjustment is not intended.
