Signature Lighting, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Left side: Remove the bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .
-- Right side: Remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

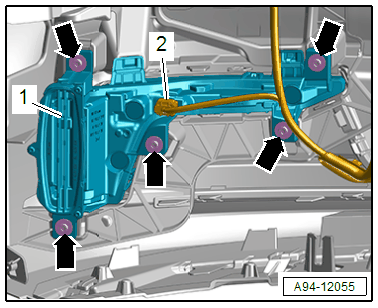

-- Disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the signature lighting -1-.
