Overview - Impact Member

WARNING: This page is about a different variant/trim than selected.

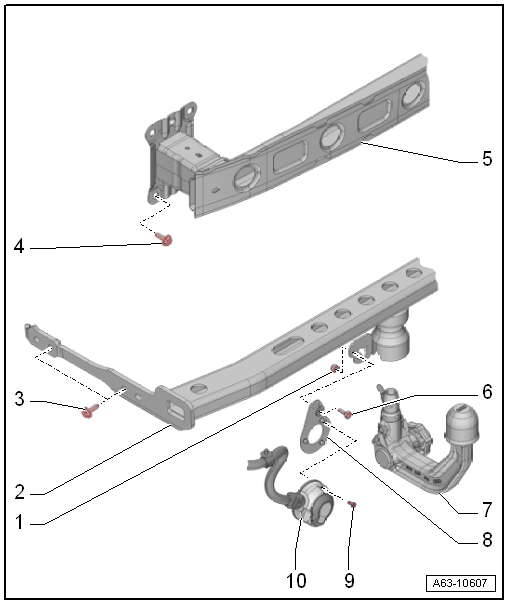

Fig 1: Exploded View Of Impact Member

Courtesy of AUDI OF AMERICA, LLC

Nut
- Self-locking
- Replace after removing.
Impact Member
- There are different versions.
- For vehicles with a trailer hitch
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING
Bolt
- 75 Nm
- Quantity: 2
Bolt
- 23 Nm
- Quantity: 4
Impact Member
- For vehicles without a trailer hitch
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES WITHOUT TRAILER HITCH
Bolt
Trailer Hitch
Mount
- For the socket
Bolt
- 3.5 Nm
- Quantity: 3
Socket
- Removing and installing. Refer to TRAILER HITCH / TRAILER HITCH (SOCKET) .
- Trailer hitch. Refer to TRAILER HITCH / TRAILER HITCH (SOCKET) .
